FEATURED
Regular price $1,918.00 + GST
Regular price Sale price $1,918.00 + GST
Sale Contact Us
Shipping calculated at checkout.

SKU:VAC-AC112500

  • Order by 2pm for Same Day Dispatch

Specifications

Weight - 29 lbs/13 kg

Negative pressure max - 400 Pa

Power consumption - 230 V, 210 W/115 V, 145 W

Prefilter - G4

Degree of separation EN 1822-1 - HEPA 13

Sound level - 45 dB lowest - 65 dB highest

Download Brochure Download Manual View full details

Product Information

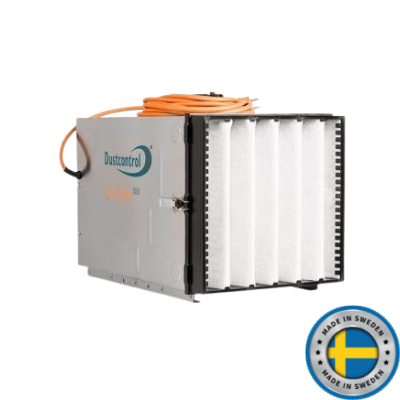

Dustcontrol Air Cleaner AC500

The most hazardous dust is the dust you can not see. High-efficiency air cleaners/air scrubbers/ air purifiers from All Preparation Equipment are designed to separate dust and particles. These particles are so small that they are not visible to the naked eye yet they cause major damage when they find their way far down into the lungs. One example is Silica Dust, which is spread when working with concrete, brick, plaster, and mortar.

The DC AirCube 500 has been developed for ease of use and high durability. It is built from stainless steel sheet metal to be extra damage resistant. The fan unit is a radial blower with a specially designed scroll to build up high pressure across its complete flow range. This means that the unit generates large amounts of airflow during the entire lifetime of the filter. Equipped with an el outlet for lamp and other. An exhaust hose can be used to create negative pressure in a sealed room. The fan has two-speed settings that allow for economical operation, for example during the night.



Built Tough

  • Effectively controls airborne and surface dust onsite
  • Works alongside current on-tool dust extraction on your handheld or stand-up power tools or construction sites
  • Built compact, designed for bathroom renovations, and small, tight or compact worksites.
  • Encapsulated fan housing contains a radial blower-type fan that builds up high pressure across its entire flow range, which provides effective air cleaning for the entire lifetime of the filter.

Warning Lights

  • Integrated light indicates when the filters need replacing for fuss-free maintenance.

High-Efficiency Filters with 2 stage filtration

  • High effective ECO-fan with less energy consumption
  • Low sound level

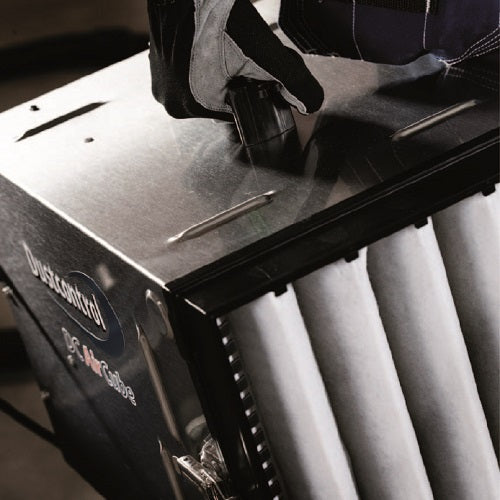

  • Washable Stainless Steel filter housing

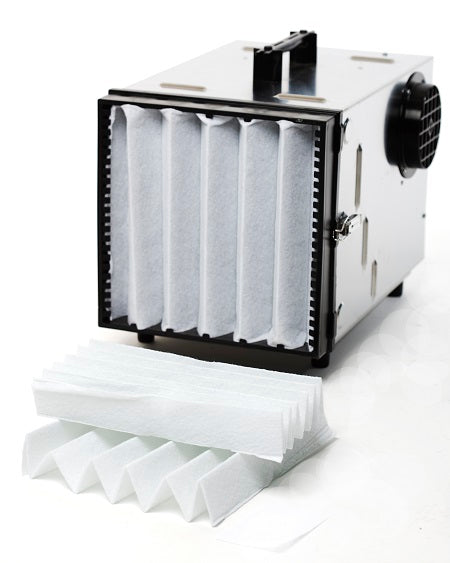

  • Easy change of filters

Variable Speed.

  • Variable speed setting to save energy when less dust is being generated.
  • This setting is frequently used by contractors to leave the machine running overnight and collect any airborne dust still present to make the cleanup process quick and easy!

Dustcontrol Air Cleaners

There is an extremely simple way of decreasing dust in a working environment. The Dustcontrol Air Cleaners are designed to improve the general site air quality and as a complement to source extraction.

  • Hook it up to electricity and have it cleaned the air, day and night.
  • Air is filtrated continuously by the large area filter.
  • Control the dust right from its source through a dust shroud/vacuum system where you can capture the dust in the bag and not be exposed to it when emptying
  • Have a secondary dust control solution for capturing airborne dust / the dust you cannot see through the Air Cleaner. These also work to replace fans/blowers which tend to redirect the hazard away.
  • Safer, cleaner, smarter onsite that you can then promote to your clients what measures you have in place.

The Dustcontrol Air Cleaners are suitable for many applications. By circulating the air through a highly efficient filter, the air in the room is cleaned by removing the hazardous airborne dust that is harmful to health. The most dangerous particles are those that are so small that they are invisible to the eye.

Dustcontrol Air Scrubbers are designed to separate fine and hazardous dust. An example of such particulate could be quartz dust, which is found in concrete, brick, grout, and mortar. When hammering, wall grinding, concrete grinding, demolition work, kitchen and bathroom renovations, and general construction, the Air Scrubber is the best solution.



Compare the models

Technical Data

Dustcontrol Air Cleaner DC500

Dustcontrol Air Cleaner DC1200

Dustcontrol Air Cleaner DC2000

H x W x L

38 x 35 x 50 cm

86 x 43 x 55 cm

102 x 56 x 70 cm

Weight

13kgs

23kgs

30kgs

Inlet Size

38 x 34 cm

25 cm

31.5 cm

Outlet Size

12.5 cm

31.5 cm

31.5 cm

Power Consumption
(230v)

210 W

385 W

585 W

Flow at Open Inlet, max*

500m3/h

1060m3/h

1850m3/h

Prefilter area **

0.18m3

0.5m3

0.5m3

HEPA Filter Area

4.56m2

5m2

10m2

Filter Class

H13

H13

H13

Sound Level

45-65db (A)

60-68db (A)

60-68db (A)



Struggling with controlling airborne dust onsite?

Our specialist team is here to help ensure you can effectively meet the requirements coming into place for Silica Dust in the construction and flooring industry.

Call the team at All Preparation Equipment on 1800 422 992 to discuss your project requirements further.
